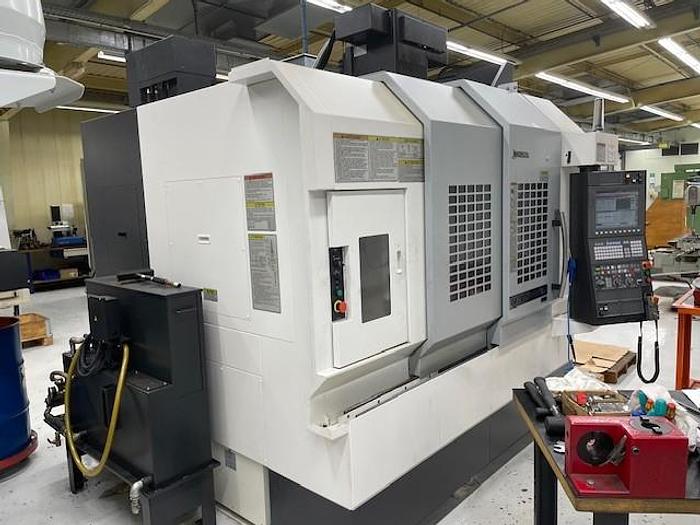

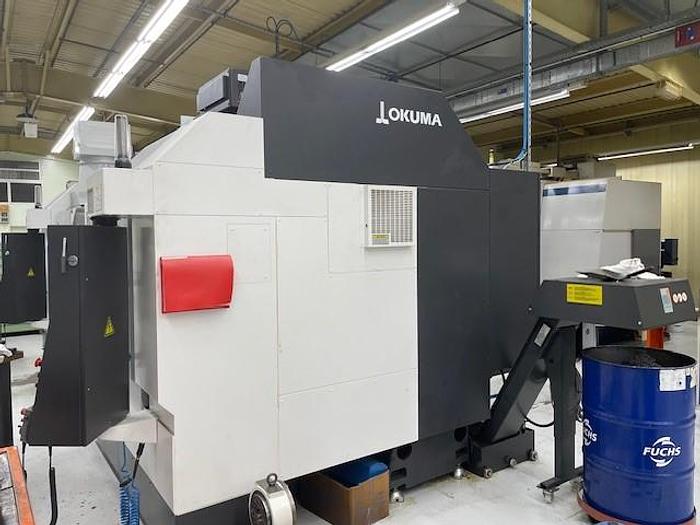

Okuma Genos M560-V-e vertical machining center

Centre d'usinage vertical Okuma Genos M560-V-e

Marque TATUNG-OKUMA type Genos M560-V-e

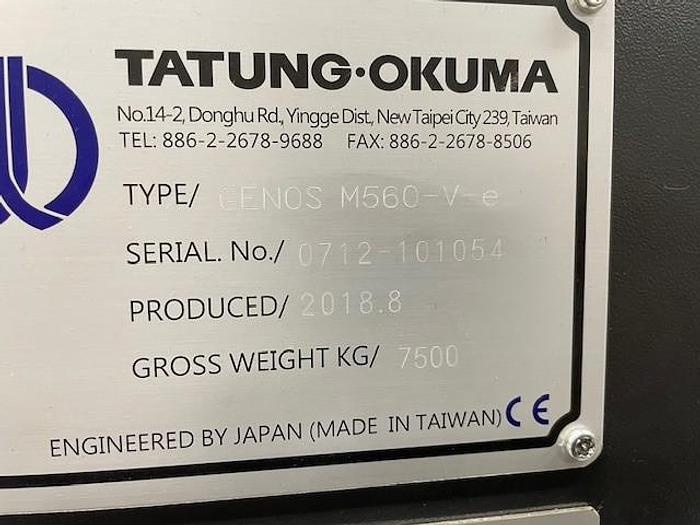

Année 2018 (plaque 08/2018 )

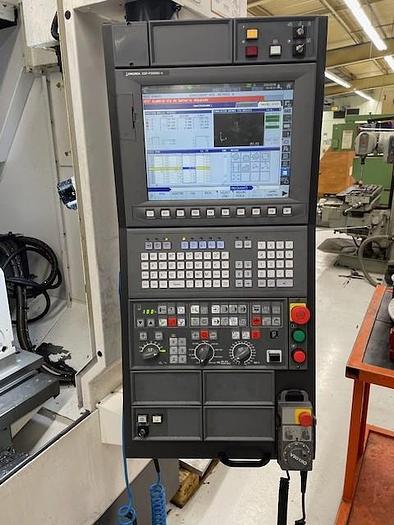

CN Okuma OSP-P300MA-e

X = 1052 x Y = 562 x Z = 462 mm

Table 1300 x 560 mm, charge admise 900 kg

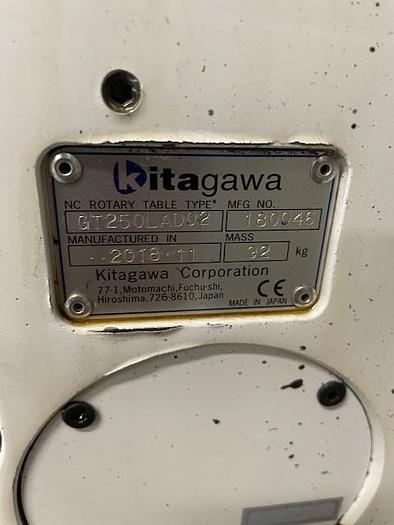

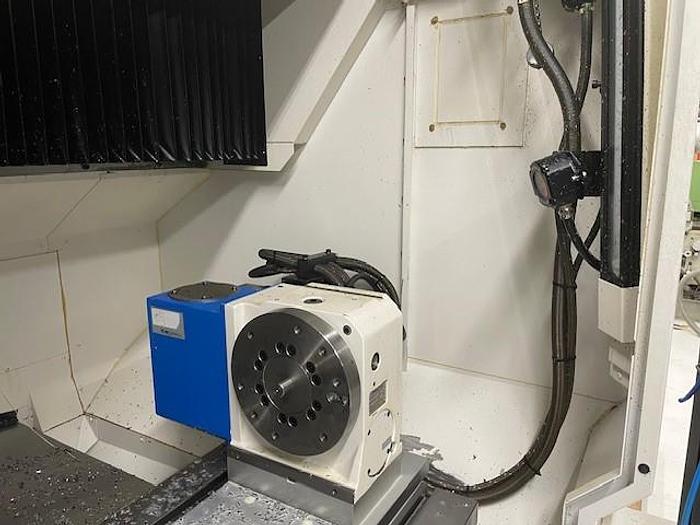

Diviseur 4ème axe KITAGAWA GT250LAD02 diam 250 mm + contre-palier (vendu sans plaque rehausse)

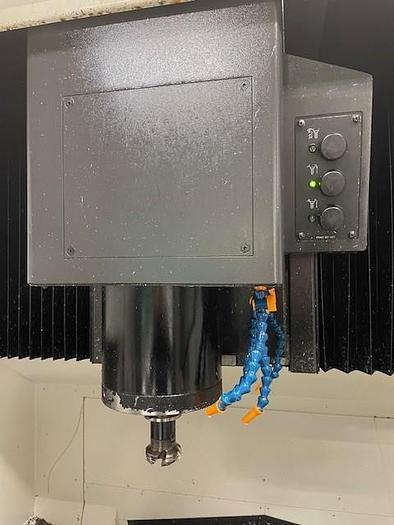

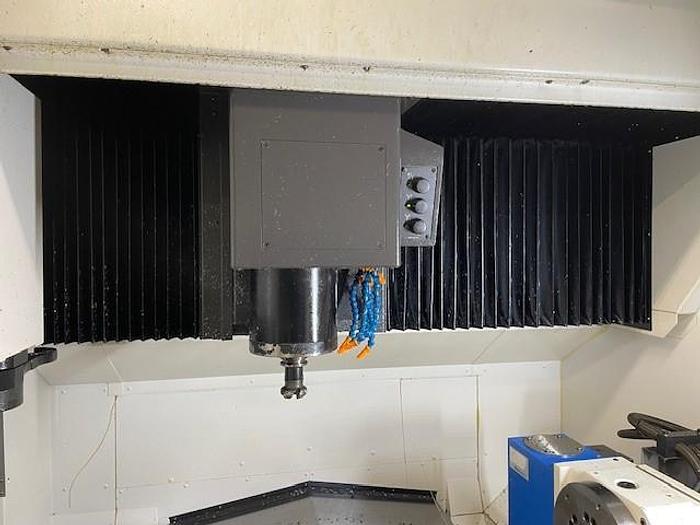

Broche BT 40 rotation maxi 15.000 tr/min

Puissance maxi. moteur de broche 18,5 kW / 22 kW (24,67 / 30 kW)

Changeur auto d’outils 32 positions

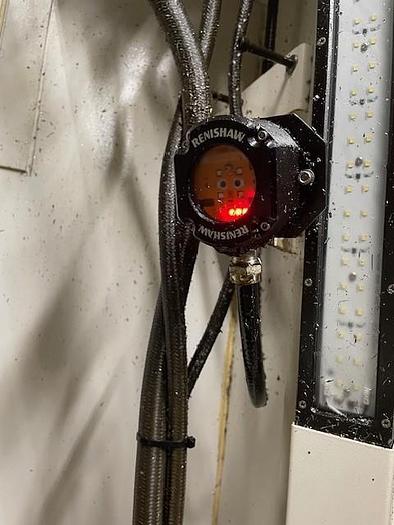

Palpeur pièce Renishaw OMP60

Avances rapides X, Y = 40 m/min et Z = 32 m/min

Avances travail X,Y et Z = 32 m/min

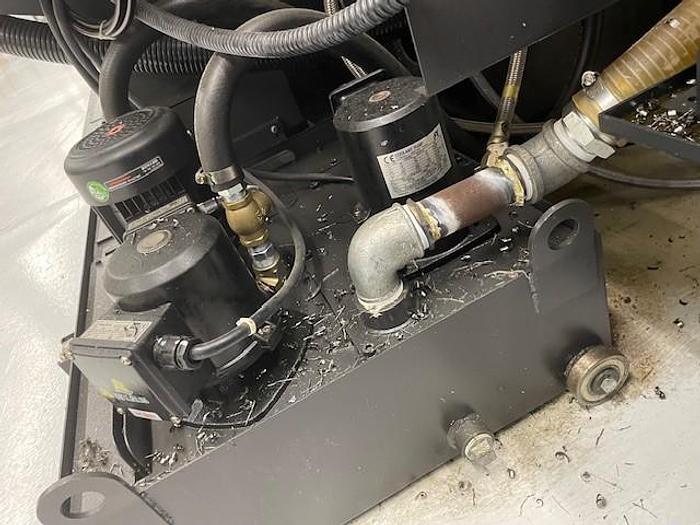

Arrosage haute pression 15 bars (20 L/min)

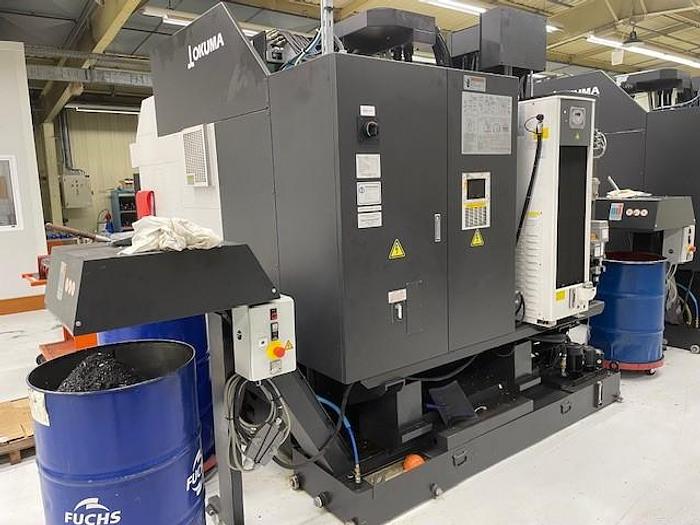

Convoyeur à copeaux Mayfrand + Groupe froid

Porte manuelle

Puissance totale requise 37 kVA

Poids machine 7,5 T

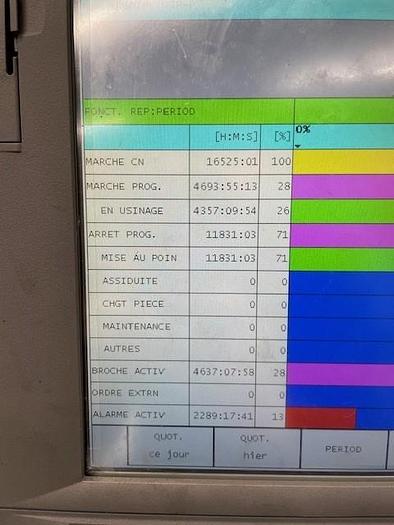

Heures usinage 4357 h, nombre heures broche active 4637h

Vertical machining center with 4th axis Okuma Genos M560-V-e

Make TATUNG-OKUMA type Genos M560-V-e

Year 2018 (plate 08/2018 )

CNC Okuma OSP-P300MA-e

X = 1052 x Y = 562 x Z = 462 mm

Table 1300 x 560 mm, admitted load 900 kg

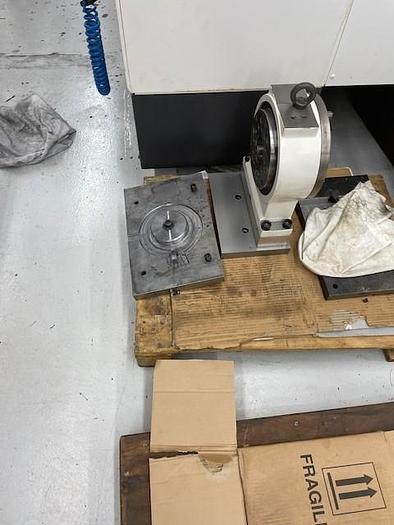

Double NC divisor 4th axis dia. 250 mm KITAGAWA GT250LAD02 + Counter divisor (sold without elevating plates)

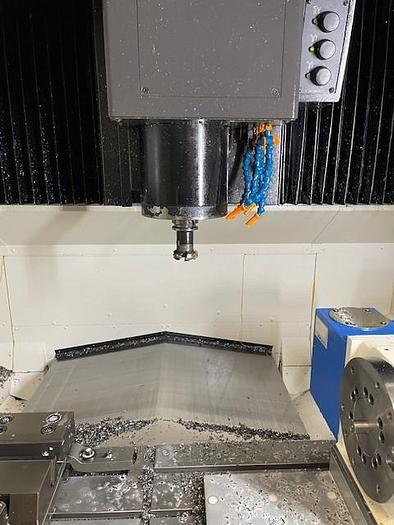

Spindle BT 40 max. speeds 15.000 RPM

Part probe Renishaw OMP60

Rapids X, Y = 40 m/min and Z = 32 m/min

Coolant Through Spindle (CTS), high pressure 15 bar (20 L/min)

Max. power of spindle motor 18,5 kW / 22 kW (24,67 / 30 kW)

ATC 32 positions

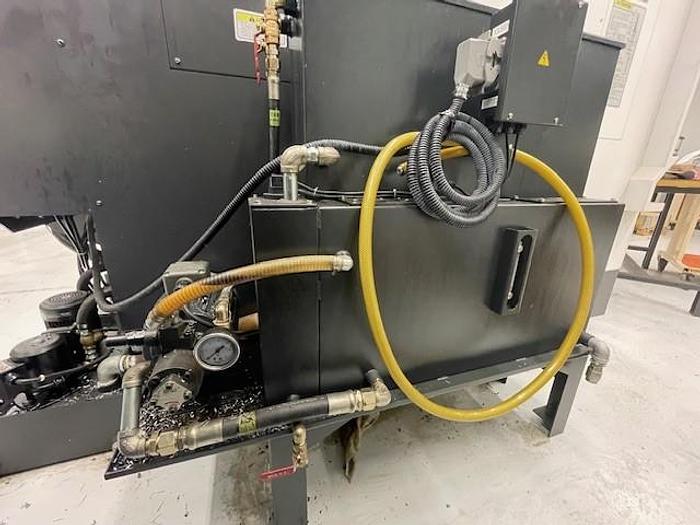

Chip conveyor Mayfran + Oil chiller

Manual opening door

Max. power required 37 kVA

Machine weight 7,5 T

Working hours 4357 h, active spindle hours 4637h
