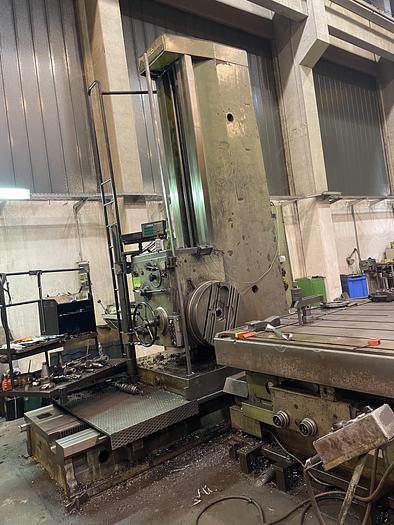

Floor type boring TOS HP 100

Floor type milling and boring machine - conventional

Make TOS VARNSDORF

Type HP 100 (manual machine)

Year 1978

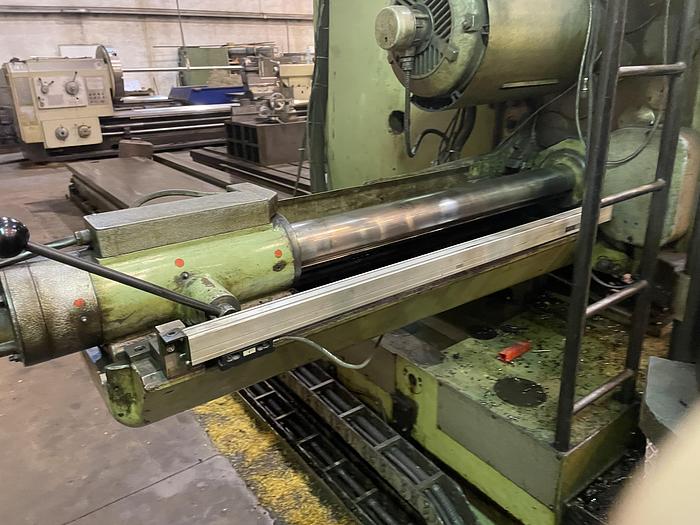

Spindle diameter 100 mm - ISO 50

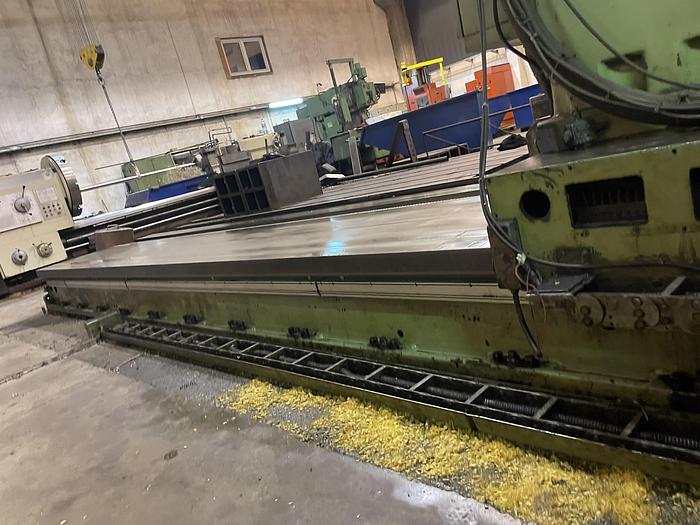

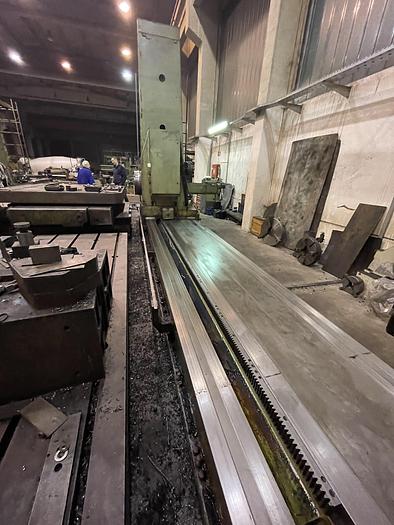

X-travel = 7000 mm

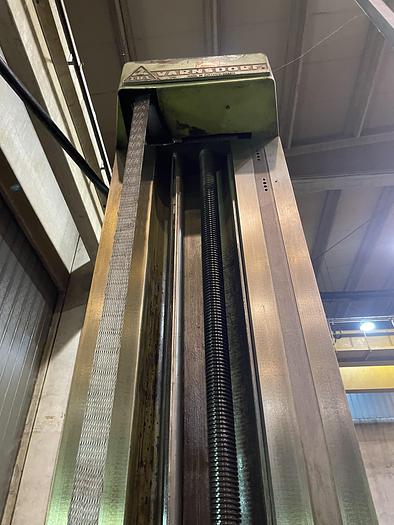

Y-travel = 2000 mm

W-travel = 900 mm

Spindle speeds 7,1 to 1120 RPM

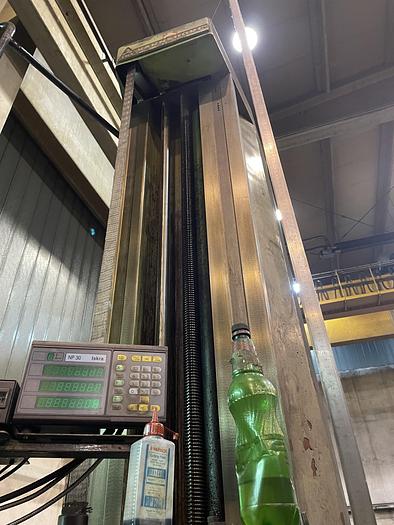

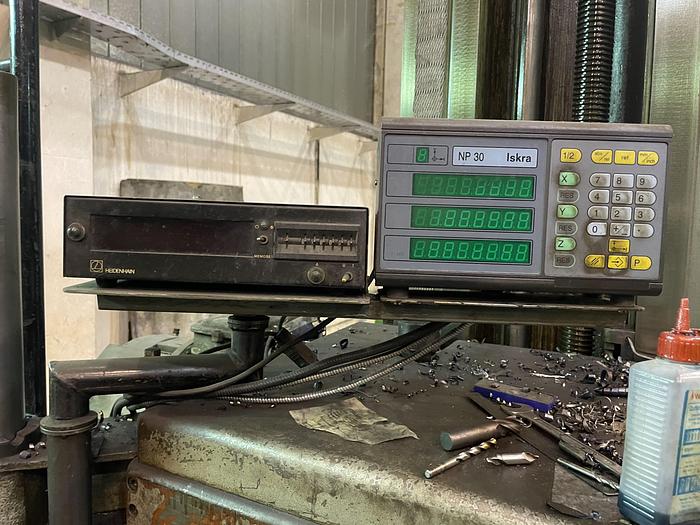

DRO on X, Y and W

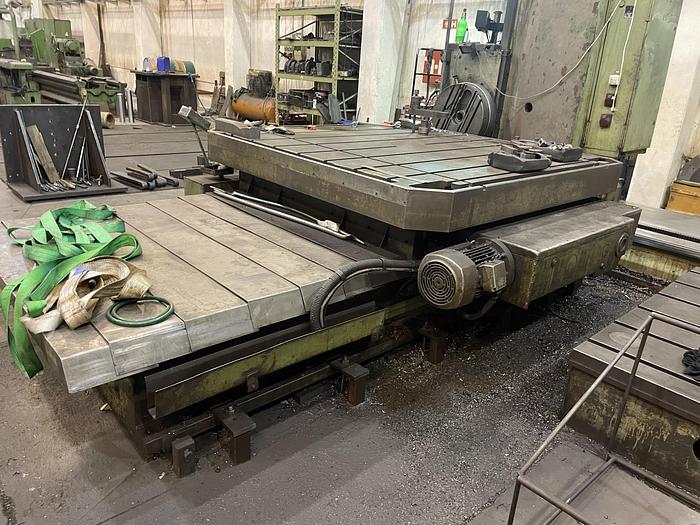

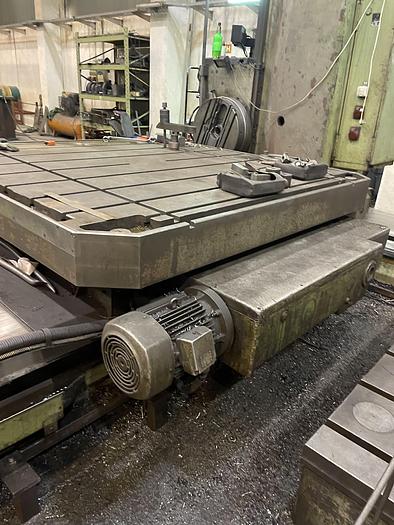

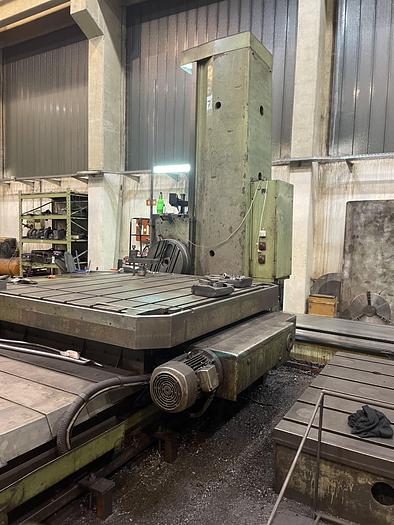

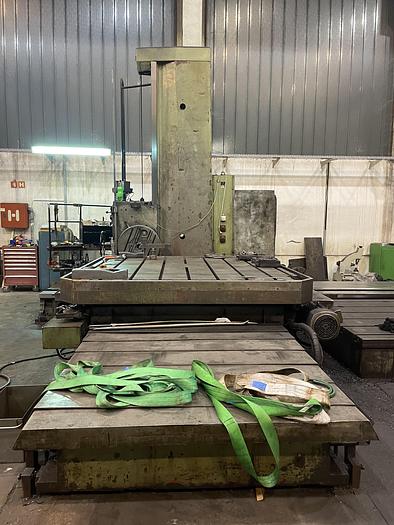

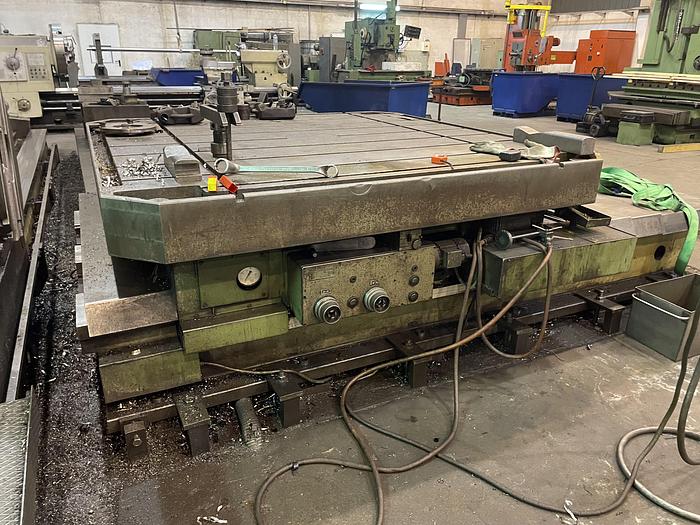

Manual rotary table TOS type ISO 16 year 1978

Dimensions 2200 x 2200 mm – max load 16 T

With V-travel 1500 mm

Overall dimensions 3550 x 2460 x H 950 mm / weight 12 T

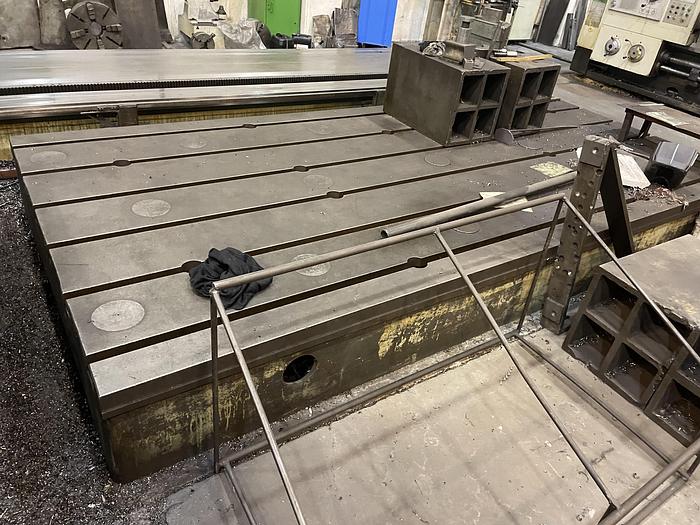

Floor plate 4000 x 1875 x H 400 mm
