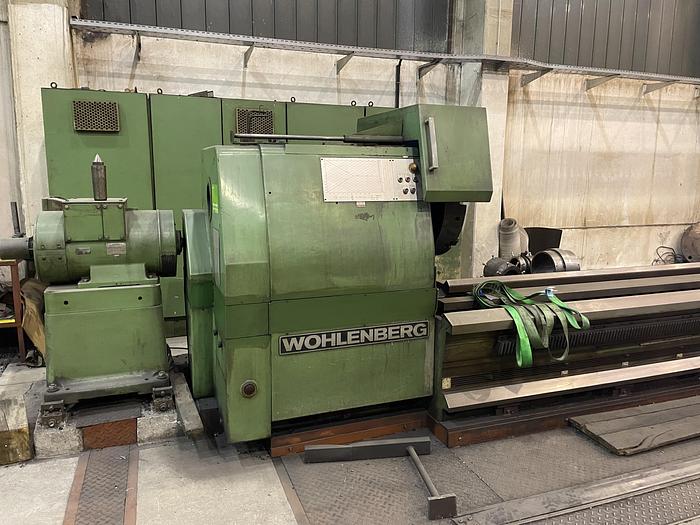

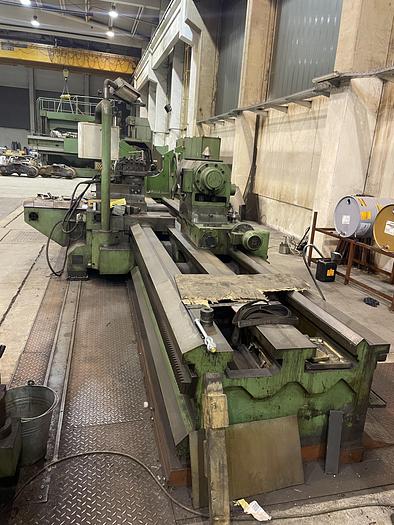

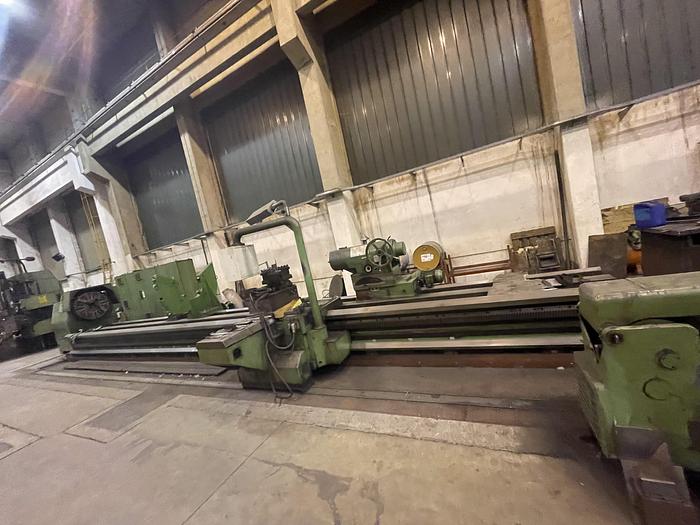

CNC lathe Wohlenberg 1000 x 10 000 mm

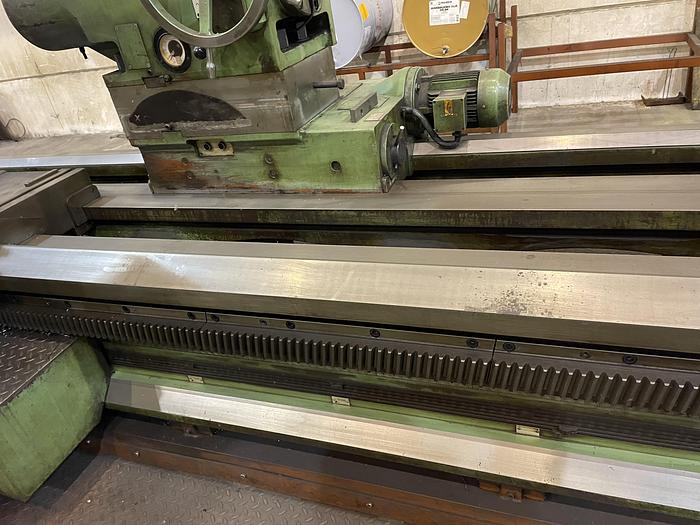

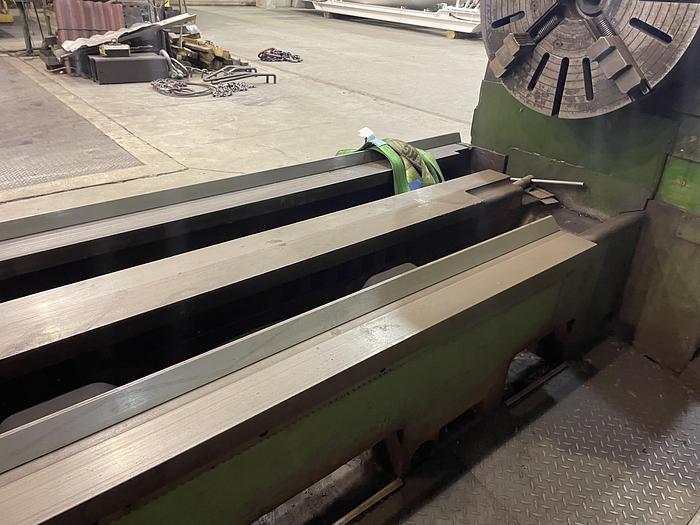

CNC lathe - flat bed lathe 4 guideways

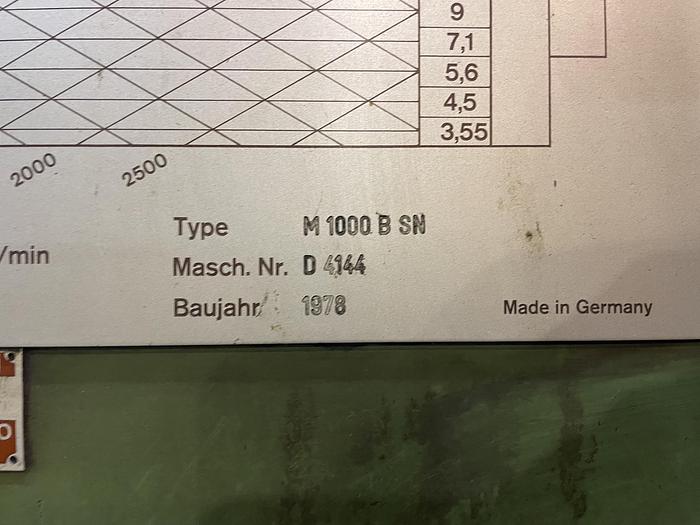

Make WOHLENBERG type M 1000 B SN x 10 000 mm

Year 1978

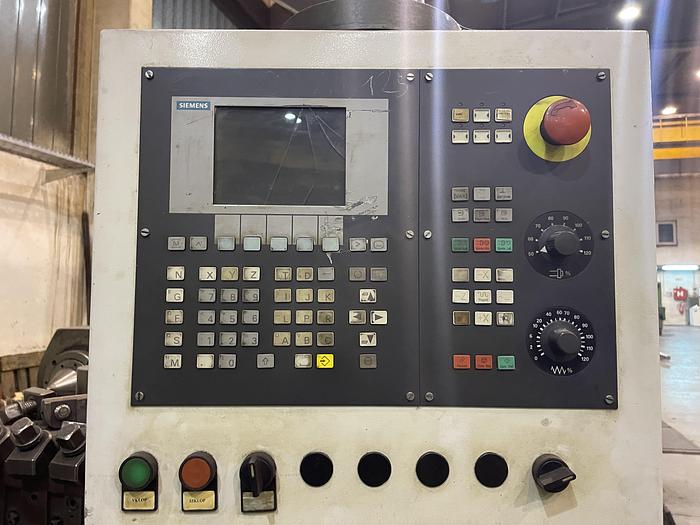

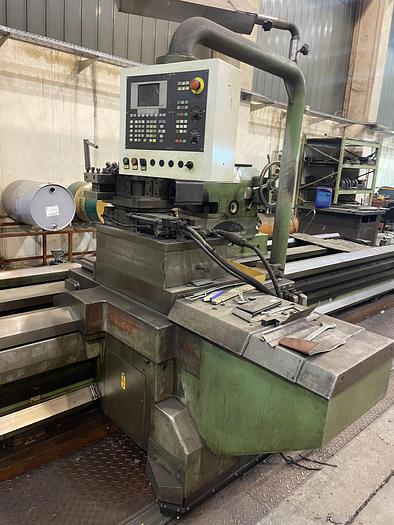

CNC Siemens 802

Distance between centers 10 000 mm

Max. turning diameter over the carriage 960 mm (swing over the carriage)

Max. turning diameter over the bed 1300 mm

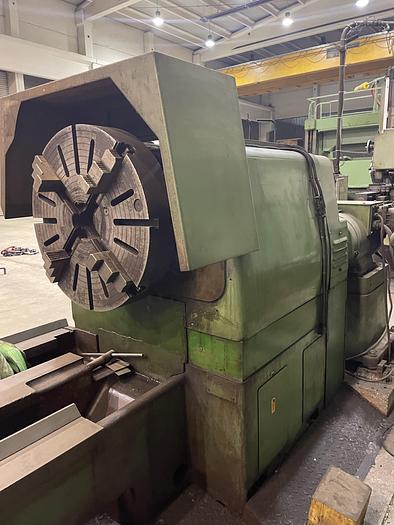

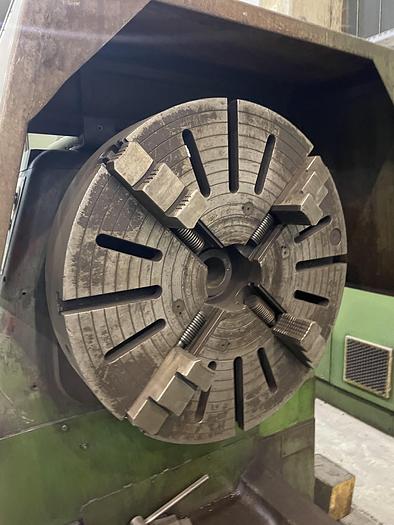

4-jaw chuck diameter 800 mm (faceplate)

Center height 680 mm

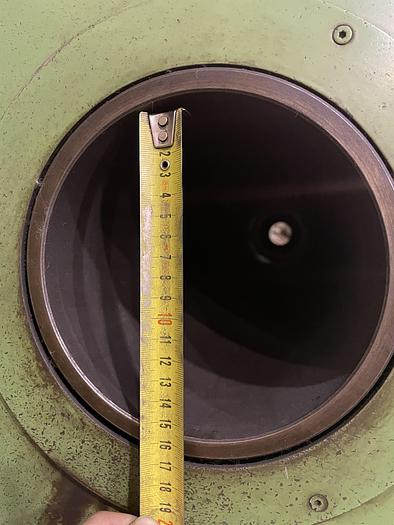

Spindle bore 160 mm (measured, to be checked)

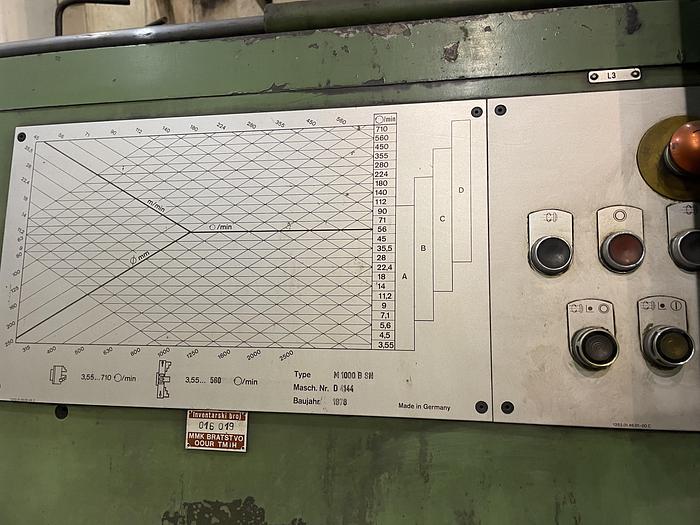

Spindle speeds 3,55 to 710 RPM (4 ranges)

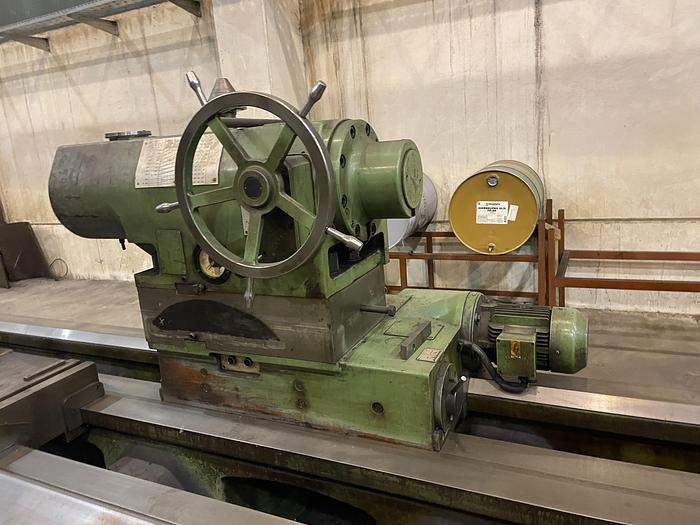

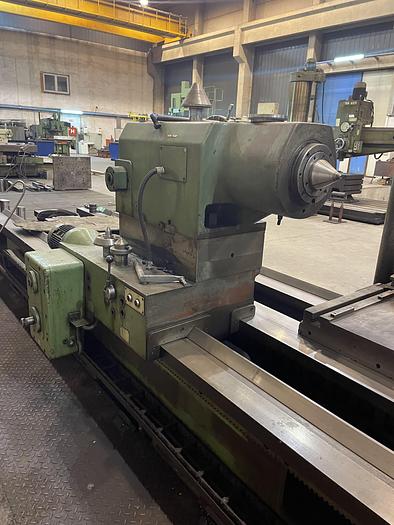

Motorized tailstock

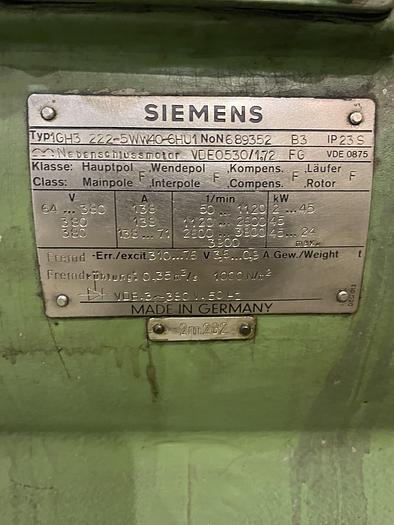

Main motor power 45 kW

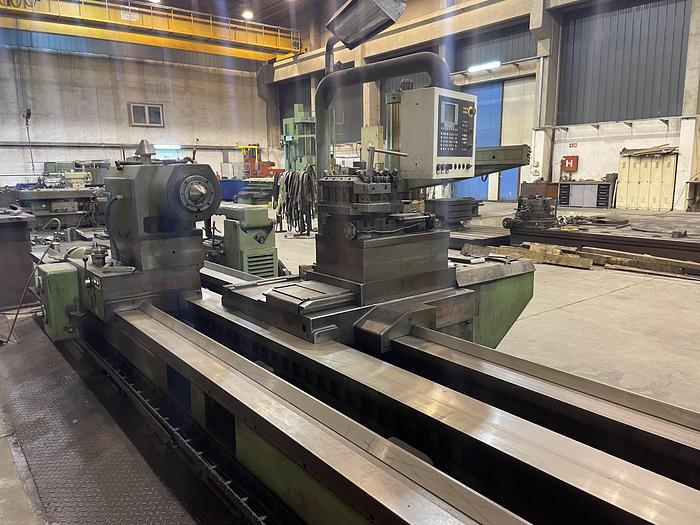

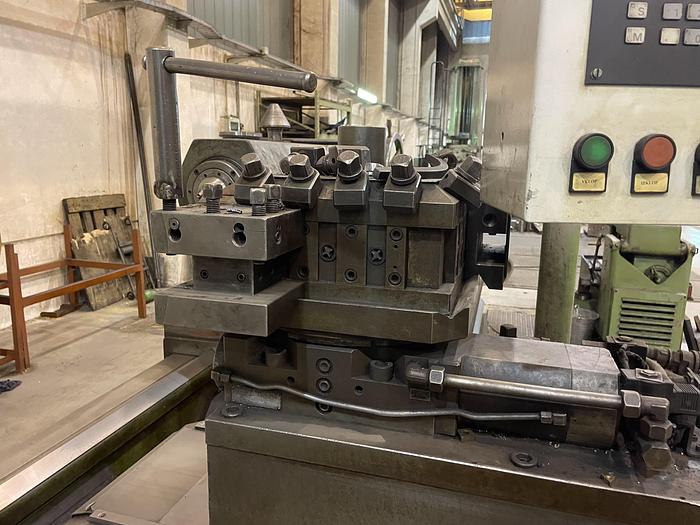

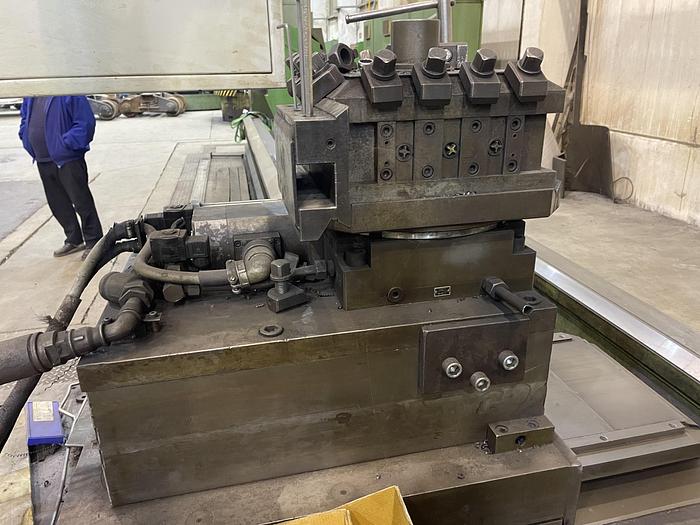

Square motorized turret 4 positions Fibro GmbH

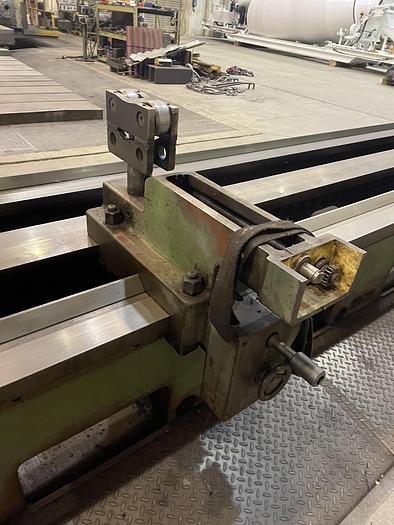

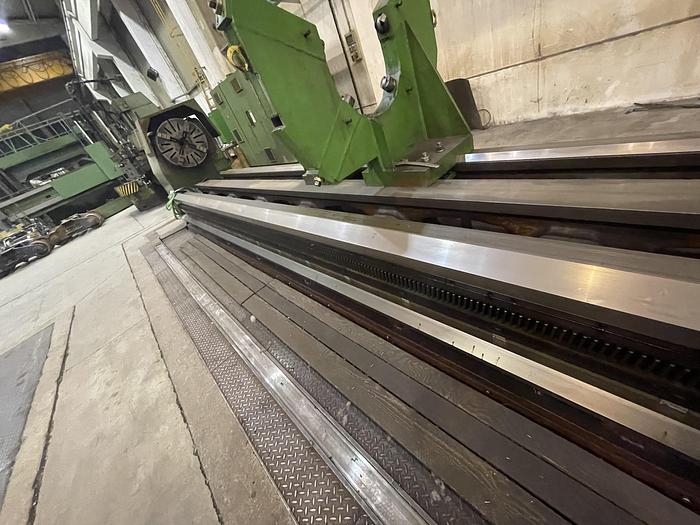

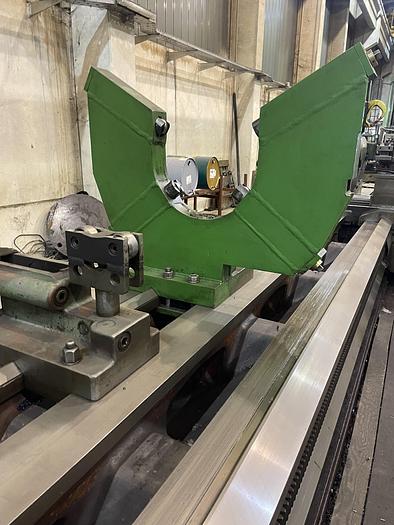

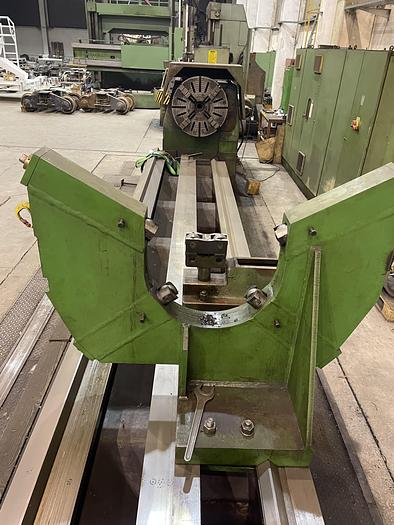

1 open steady diam 530 mm
